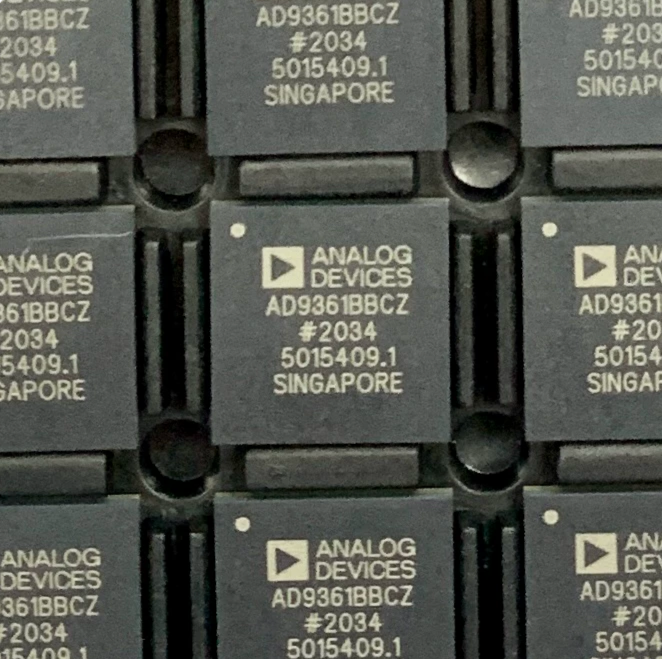

RF transceiver integrating 12 bit DAC and ADC

Transmission frequency range: 47 MHz to 6.0 GHz

Receiving frequency range: 70 MHz to 6.0 GHz

Support TDD and FDD operations

Adjustable channel bandwidth:<200 kHz to 56 MHz

Dual receiver: 6 differential or 12 single ended inputs

Excellent receiving sensitivity, with a noise figure of 2 dB at 800 MHz LO

Receive gain control real-time monitoring and control signals for manual gain independent automatic gain control

Dual transmitters: 4 differential outputs

High linearity broadband transmitter

Transmitting EVM: ≤ -40 dB

Emission noise: ≤ -157 dBm/Hz background noise

Launch monitoring: Dynamic range ≥ 66 dB, accuracy 1 dB

Integrated score N synthesizer

Maximum local oscillator (LO) step: 2.4 Hz

Multi chip synchronization

CMOS/LVDS digital interface
